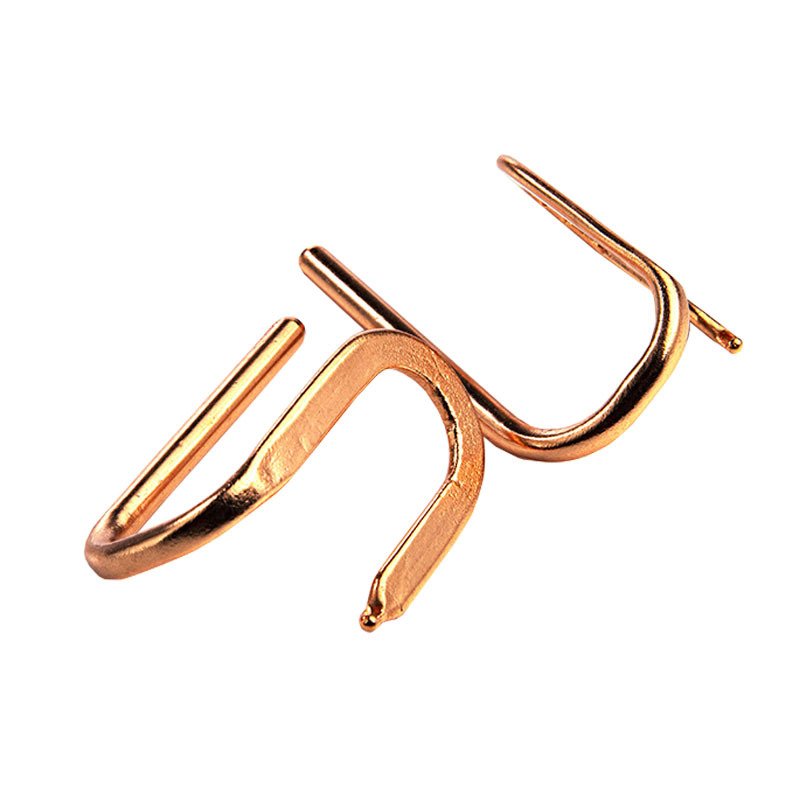

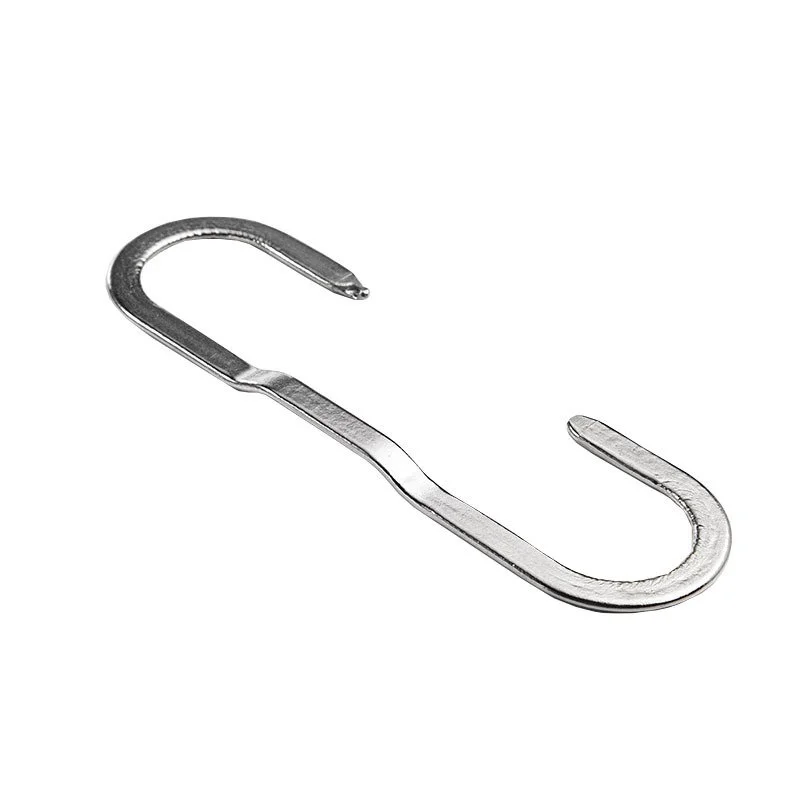

HEAT PIPE
A heat pipe is a highly efficient heat transfer device that is used to transport heat from one location to another. It consists of a sealed and evacuated tube filled with a small amount of a working fluid, such as water or a refrigerant. The heat pipe utilizes the principles of evaporation and condensation to transfer heat quickly and efficiently.
When heat is applied to one end of the heat pipe, the working fluid inside evaporates to form a vapor. The vapor then moves towards the cooler end of the heat pipe, where it condenses back into a liquid. This phase change process releases the latent heat, allowing for rapid heat transfer. The condensed liquid then returns to the heated end of the heat pipe through a capillary wick or by gravity, and the cycle repeats.
Heat pipes are widely used in various applications where efficient heat transfer is necessary. They are commonly found in electronics cooling systems, aerospace and aviation industries, thermal management systems, and even in solar panels. Due to their high heat transfer efficiency, compact size, and reliable operation, heat pipes are an essential component in many heat management solutions
Features
＊Operation: At the hot interface of a heat pipe, a volatile liquid in contact with a thermally conductive solid surface turns into a vapor by absorbing heat from that surface. The vapor then travels along the heat pipe to the cold interface and condenses back into a liquid, releasing the latent heat1. This operation allows efficient heat transfer over relatively long distances.
＊Heat Transfer Rate: Heat pipes are known for their high heat transfer rates. They can transport heat from a hot source to a cool sink with minimal temperature difference, resulting in effective thermal management.
＊Thermal conductance: Heat pipes have high thermal conductance due to their construction. They typically consist of a sealed metal tube with an inner wick structure and a working fluid. The wick promotes the capillary action of the working fluid, allowing for efficient heat transfer.
＊Operating Temperature Range: Heat pipes can operate across a wide temperature range, from cryogenic temperatures to high-temperature applications. The specific temperature range depends on the design and materials used.
＊Passive Operation: Heat pipes operate using passive principles and do not require any external power source. This makes them suitable for applications where power supply or active cooling may be limited or impractical.
Parameters
Size:200mm*8mm/200mm*6mm/230mm*8mm/250mm*8mm...
Material: Copper
Usage: Thermal conductivity and heat dissipation
Determine the materials, specifications, tolerances, surfaces, packaging, diameters, styles, etc. that you need, and we'll customize the heat sink components to meet your needs

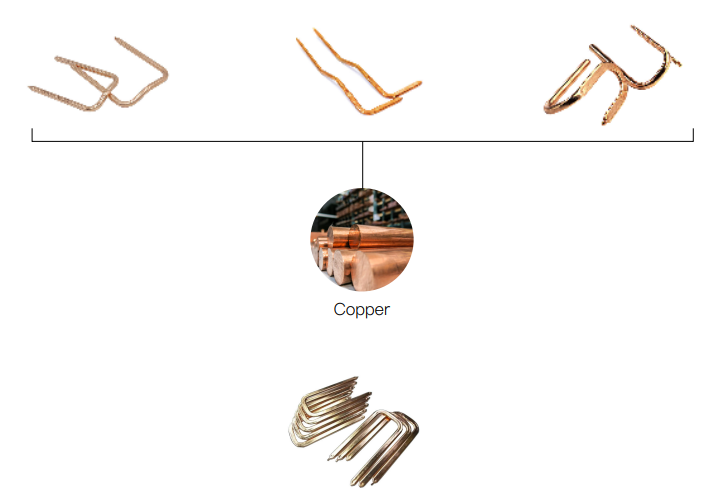

Materials
Copper/water heat pipes are commonly used in electronics cooling applications due to their excellent thermal conductivity and compatibility with water as the working fluid. Aluminum-based heat pipes, such as those used with ammonia as the working fluid, are often employed in aerospace and automotive applications due to the lightweight nature of aluminum.
Other materials have also been investigated, including lightweight materials such as beryllium-based alloys, carbon fiber composites, and titanium alloys. However, these materials may not have seen widespread use in heat pipe applications.
It's worth noting that the specific choice of material for a heat pipe depends on the specific application and its requirements. Factors such as operating temperature, thermal performance, and material compatibility must be considered when selecting the appropriate material for a heat pipe
The ability of heat pipe to efficiently transfer heat makes them invaluable in various industries, contributing to better performance, energy savings, and thermal management
Application
Quality control procedures for heat pipes involve a series of tests and checks to ensure that the heat pipes meet their required specifications and performance standards. The procedures include both in-process quality control checks and end-product testing to ensure specific requirements are met.
During the manufacturing process, quality control procedures may include checks on tube diameter, wall thickness, and straightness, as well as testing the wick structure, the connector seals, and the vacuum integrity. Specialized testing may also be required based on the specific heat pipe's applications, such as leak detection, thermal performance analysis, and pressure testing.
At the end of the manufacturing process, heat pipes are usually subjected to rigorous end-product testing to ensure they meet their required performance standards. These tests may include checking the thermal resistance, power consumption, heat transfer capability, and isothermality of the heat pipe. Also, a final check may be necessary to ensure that all the specifications of the heat pipe are compliant with customer requirements.
Quality control
The main production equipment used in the manufacturing of heat pipes can vary depending on the specific manufacturing processes and requirements of the heat pipe manufacturer. However, here are some common production equipment typically used in heat pipe production:
1. Tube Cutting Machine: This machine is used to cut the metal tubing to the desired length for the heat pipe. It ensures precise and accurate cuts.
2. Tube Cleaning Equipment: Heat pipes often require thorough cleaning to remove any contaminants or impurities from the tube surfaces. Tube cleaning equipment, such as ultrasonic cleaning systems, are used for this purpose.
3. Tube Bending Machine: Sometimes, the heat pipe tubing needs to be bent into specific shapes or angles to suit the design requirements. Tube bending machines are used to achieve precise and consistent bends.
4. Evaporator and Condenser Manufacturing Equipment: The manufacturing process of the evaporator and condenser sections of the heat pipe may involve various specialized equipment, including welding machines, soldering stations, and brazing furnaces. These equipment help in joining different components and creating sealed connections.
5. Wick Manufacturing Equipment: The wick structure inside the heat pipe plays a crucial role in its operation. Various methods, such as sintering, screen printing, or groove cutting, may be employed to manufacture the wick structure. Equipment like screen printers or CNC machines can be used for this purpose.
6. Filling and Sealing Equipment: After assembling the heat pipe components, the working fluid needs to be added, and the heat pipe is sealed to create a hermetically sealed system. Equipment like vacuum filling machines or inert gas filling machines are used for this step.
7. Testing and Quality Control Equipment: To ensure the heat pipes meet the required specifications and performance standards, various testing and quality control equipment are utilized. This may include pressure testing machines, leak detection systems, thermal performance analyzers, and other specific testing equipment based on the heat pipe applications and requirements.
It's important to note that the specific equipment may vary among manufacturers based on their processes and capabilities.
Main production equipments
Our laboratory testing equipment
United States/Germany/China/Japan/South Korea/United Kingdom/Sweden/Switzerland
The main clients
The wrapping of a heat pipe refers to the process of enclosing or surrounding the heat pipe with a protective material or sheath. This wrapping serves multiple purposes, including thermal insulation, protection against external elements, and enhancing heat transfer efficiency.
The heat pipe wrapping process typically involves the following steps:
Selection of wrapping material: The choice of wrapping material depends on factors such as thermal conductivity, corrosion resistance, and mechanical properties. Common wrapping materials include aluminum, copper, or composite materials.
Enclosing the heat pipe: The heat pipe is carefully inserted into the wrapping material, ensuring a tight fit to maintain effective heat transfer and prevent the ingress of contaminants.
Securing the wrapping: The wrapping material is securely fastened or sealed to ensure it remains in place during operation and provides the necessary protection.
Wrapping heat pipes can be used in various applications, such as HVAC systems, electronics cooling, and solar thermal systems.
Please note that the specific wrapping process may vary depending on the application and requirements. It is recommended to consult manufacturer guidelines or expert advice for the optimal wrapping procedure for a specific heat pipe application.
Wrapping
Q: What is a heat pipe?
A: A heat pipe is a passive, two-phase heat transfer device that uses the latent heat of evaporation and condensation to transfer heat effectively and efficiently. It consists of a sealed tube with a wick structure and a small amount of working fluid that moves heat from a hot source to a cold sink via vaporization and condensation.
Q: What are the benefits of using a heat pipe?
A: Heat pipes have several benefits, including high thermal conductivity, low thermal resistance, excellent isothermality, and adaptability to various orientations. They also have no moving parts, require no external power, and can operate in a vacuum or microgravity environment.
Q: What are some common applications of heat pipes?
A: Heat pipes have a wide range of applications, including in electronics cooling, thermal management of spacecraft, solar thermal systems, air conditioning and refrigeration systems, and heat recovery systems. They can also function as heat spreaders or heat sinks.
Q: How do I select the right heat pipe for my application?
A: Typically, the best heat pipe selection for an application involves consideration of factors such as operating temperature range, cooling power, size constraints, and working fluid material compatibility. Additional criteria such as orientation, wick structure, and heat source/sink characteristics are also vital in ensuring optimized and efficient performance.
Q: How do I calculate the heat transport capacity of a heat pipe?
A: The calculation of a heat pipe's heat transport capacity depends on factors such as its length, evaporator and condenser length, diameter, orientation with respect to gravity, and wick structure. The heat pipe performance curve can be estimated using a heat pipe calculator. Thermal engineers can use this data to choose the appropriate heat pipe that meets their requirements.
These FAQs should provide you with a basic understanding of air-cooled heat sinks. If you have any more specific questions, feel free to ask!
FAQs
Searching for a top-notch motor heatsink for your business or project? Count on Tone as your ideal choice. We're your ultimate partner for successful motor heatsink projects.
Our factory
1. What are industrial heat sinks?
Industrial heat sinks are specialized cooling solutions used in industrial settings to manage and dissipate excessive heat generated by machinery, equipment, and processes.
2. Why are industrial heat sinks important?
Industrial processes often generate significant heat that can impact equipment performance, efficiency, and safety. Heat sinks efficiently dissipate this heat, preventing overheating and maintaining optimal working conditions.
3. What types of industrial heat sinks are available?
There are various types of industrial heat sinks, including finned heat sinks, liquid cooling systems, heat pipes, and more. These options cater to different heat dissipation needs and specific industrial applications.
4.Where are industrial heat sinks used?
Industrial heat sinks are used in diverse sectors, such as manufacturing, power generation, electronics production, chemical processing, and more, where excess heat needs to be managed to ensure equipment reliability and safety.
5.How do I choose the right industrial heat sink for my application?
Selecting the right heat sink involves considering factors like the heat load, available space, environmental conditions, and specific industry requirements. Consulting with experts or manufacturers can help in making informed choices.
6. Can industrial heat sinks be customized?
Yes, many manufacturers offer customization options for industrial heat sinks. These can include variations in size, shape, material, and design to suit specific application needs.
7. Can heat sinks work alone for industrial cooling?
For many industrial applications, heat sinks alone might not be sufficient to manage extremely high heat loads. In such cases, heat sinks can be integrated with other cooling methods like fans, liquid cooling systems, or heat exchangers for more effective heat dissipation.
8. Are there maintenance requirements for industrial heat sinks?
Maintenance requirements vary based on the specific heat sink and its application. Regular cleaning to remove dust and debris that can hinder heat transfer is typically recommended.
9. How do industrial heat sinks contribute to energy efficiency?
By effectively dissipating heat and maintaining optimal temperatures, industrial heat sinks can prevent the need for excessive cooling methods, leading to energy savings and improved overall efficiency.
10. Can I install industrial heat sinks myself?
Installing industrial heat sinks often requires technical expertise to ensure proper sizing, placement, and integration. It's advisable to consult professionals or manufacturers to ensure effective installation.
FAQ About Electronic Heat Sink
Simulation Solution
If you are interested in heat dissipation solutions and heat sinks, please contact us by email info@tonethermal.com, and we will be at your service.
