PCB Heat Sink
PCB Heat Sink

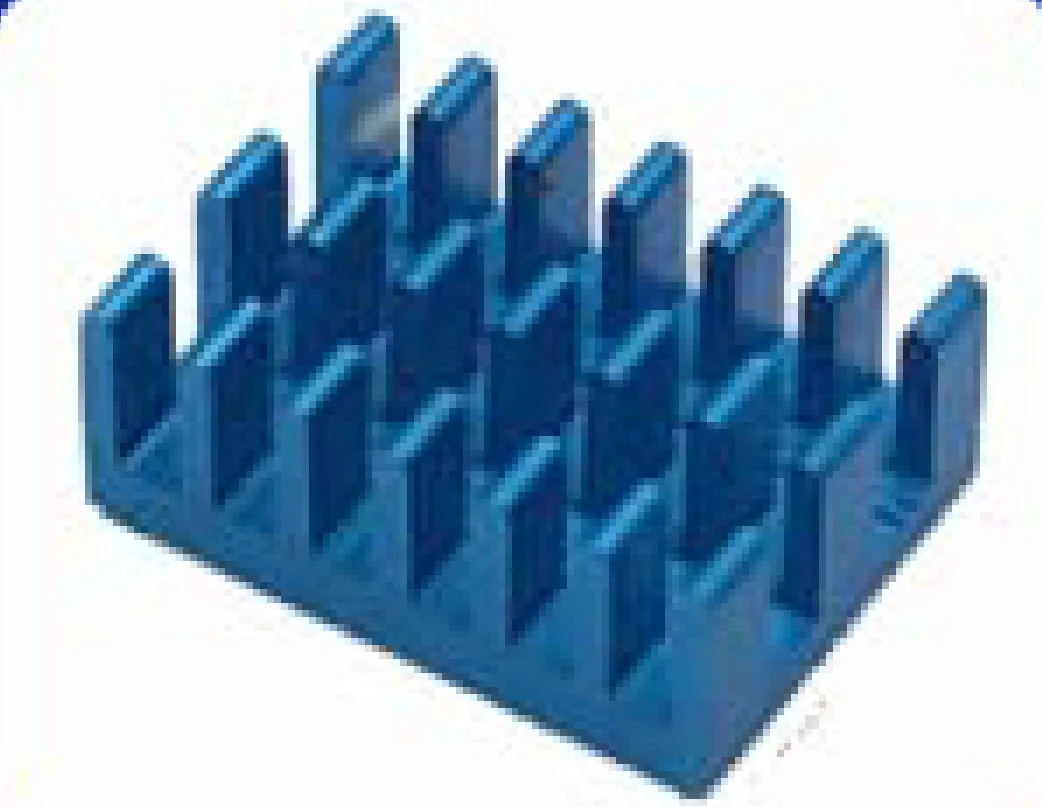

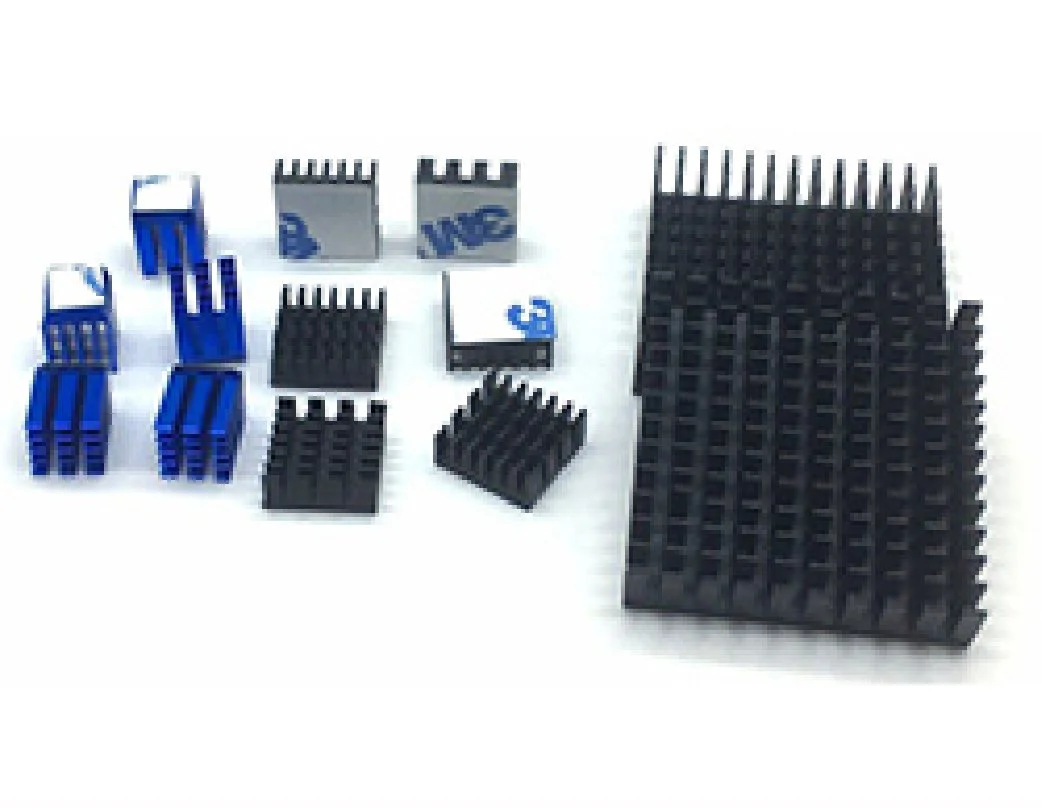

A PCB heatsink is a specialized component used to manage and dissipate heat from printed circuit boards (PCBs). PCBs are the foundation of electronic devices, containing various components like integrated circuits, resistors, and capacitors that generate heat during operation. PCB heatsinks are designed to efficiently transfer this heat away from the PCB, preventing overheating and ensuring the optimal functioning and longevity of the electronics. These heatsinks are available in various shapes and sizes to suit different PCB layouts and thermal requirements, making them essential for applications where GET A QUOTE temperature management is critical.
Part of Our Products
At Tone, you have the option to request PCB heatsinks without incurring tooling costs and with no minimum order requirements.
| Material | Aluminum, Copper |
| Temper | T3-T8 |
| Shapes | Based on your requirements. |
| Finish | Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF, etc. |
| MOQ | Low MOQ |
| Application | pico projector, electronic refrigerator, red wine cooler, LASER TV, LCD TV, LED panel, Sound, Air condition, induction cooker,stage light, high bay light, downlight, street light, automobile lamp, computer mainboard, PC, IPC, Server, PCTV, Router, Power supply (CPU cooler, VGA cooler, Cooling fan) |
| Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication |
| Finish | Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF, etc. |
| Certificate | CE/SGS/ISO/Rohs |
| Service | 1. Free sample, Free design. 2. OEM/ODM available. 3. Custom-made request. 4. New design solution suggestion. |
● Efficient Cooling in Vertical Orientation
●Aesthetic Appeal
● Versatility
● Improved Structural Integrity
At Tone, we offer customizable options for PCB heatsinks. Feel free to provide your specifications to request custom-designed PCB heatsinks.
Our Workshop
send 3D and CAD drawing, confirm production details
confirm the order and start to make samples.
Customization Process
surface treatment confirmation.
send samples to confirm quality and product details
we send the quotation to your for review.
after sample is confirmed, we will start mass production
The Process of Heat Sink Production
Our Packaging
1.What is a PCB heatsink?
A PCB heatsink is a component designed to dissipate heat from electronic components on a printed circuit board (PCB). It helps maintain optimal operating temperatures and prevents overheating.
2.Why do I need a PCB heatsink?
PCBs often include components like CPUs, GPUs, or power regulators that generate heat during operation. Heatsinks efficiently transfer this heat away from the components, preventing damage and maintaining performance.
3.How does a PCB heatsink work?
PCB heatsinks work through conduction and convection. They physically contact the hot components, absorbing their heat, and then use their larger surface area to dissipate the heat into the surrounding air.
4.Are PCB heatsinks one-size-fits-all?
No, PCB heatsinks come in various sizes, shapes, and designs to accommodate different PCB layouts and component configurations. Customization options allow you to choose the right heatsink for your specific needs.
5.Can I install a PCB heatsink on any component?
Heatsinks are most effective when installed on components that generate significant heat, such as processors or power components. Smaller, less heat-intensive components may not require a heatsink.
6.Can I add a heatsink to an existing PCB?
Yes, you can add a heatsink to an existing PCB as long as there is sufficient space and appropriate mounting options. However, careful consideration of the PCB layout and compatibility is necessary.
7.Do PCB heatsinks have any electrical insulation?
Most PCB heatsinks are designed to be electrically non-conductive. However, it's important to verify this feature, especially if the heatsink could come into contact with components or traces on the PCB.
8.What materials are PCB heatsinks made from? PCB heatsinks are typically made from thermally conductive materials like aluminum or copper. These materials effectively transfer heat while being lightweight and cost-effective.
9.Can I customize the design of a PCB heatsink?
Many manufacturers offer customization options for PCB heatsinks. You can often choose the size, shape, and even branding elements to match your project's requirements.
10.Are there any installation considerations for PCB heatsinks?
Proper installation is essential. Ensure the heatsink makes good contact with the component, and if needed, use thermal paste or pads to enhance heat transfer. Also, verify that the heatsink doesn't interfere with other components or connectors.
