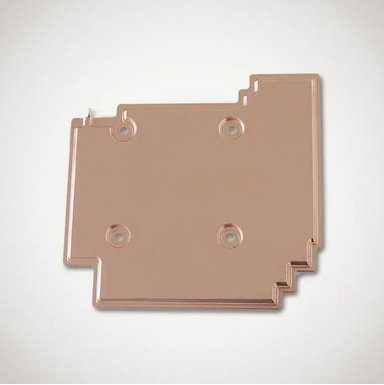

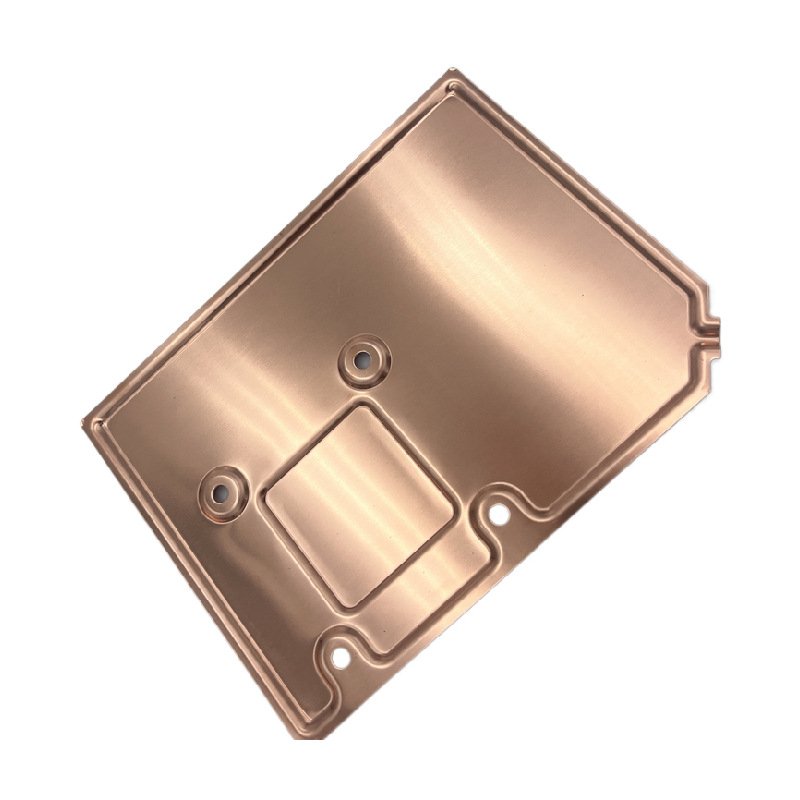

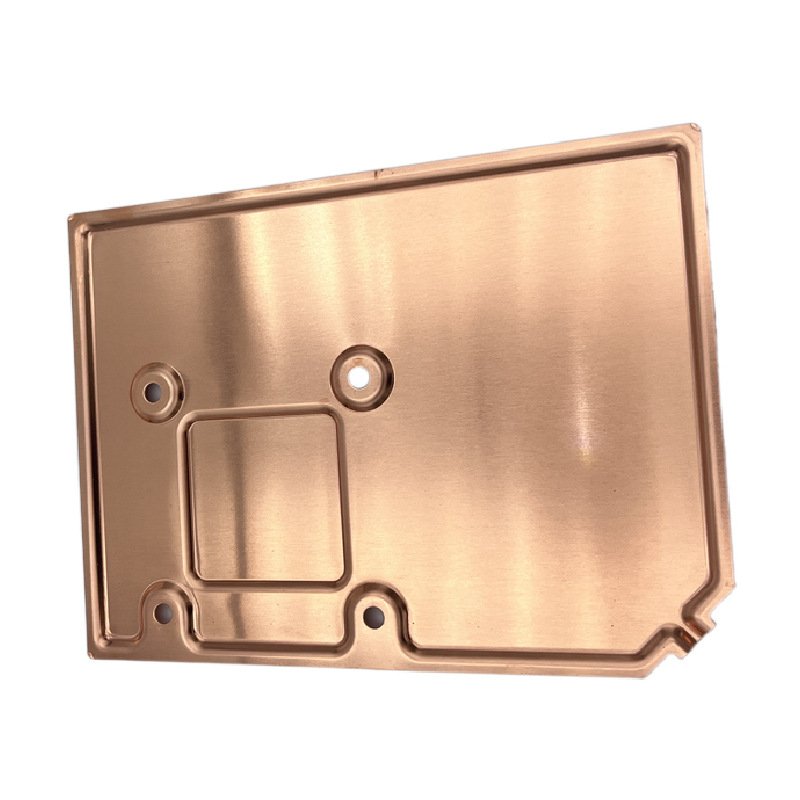

Vapor Chamber
Vapor Chamber
Equal temperature plate is a vacuum cavity, the inner wall with a microstructure (WickStructure),
a microstructure containing liquid mass, the use of mass boiling gasification volume expansion to do the heat
transfer, and the use of capillary force generated by the boiling, the cooled mass reflux to the heat source.
*Cavity material: copper (C1100/C1020).
*Microstructure: multi-layer copper mesh, regionalised pore size design Work: water, H2O
*Thickness:1.0mm(MM) or more, Maximum size:400mm(MM)X400mm(MM), No limitation on the external
shape.

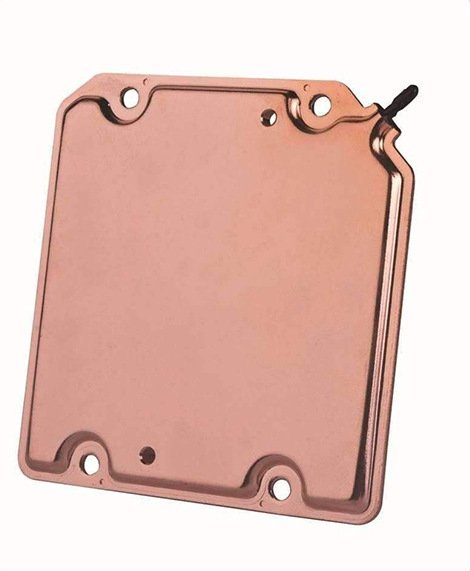

*With or without water filling tube is available
*Bump design can be, cavity holes can be finished products can be post-processing
